Tascam I/O
Tascam BO-16DX/IN

Tascam I/O

Key Features:

  • Breakout Boxes
  • Dante Converters
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Tascam I/O

Audio-over-IP with Dante® converters from Tascam / Master clock generators for device synchronization in the studio. With practical, powerful Dante interfaces, you can set up a sound system over an IP network with simple LAN cables in very short time.

Product Variants

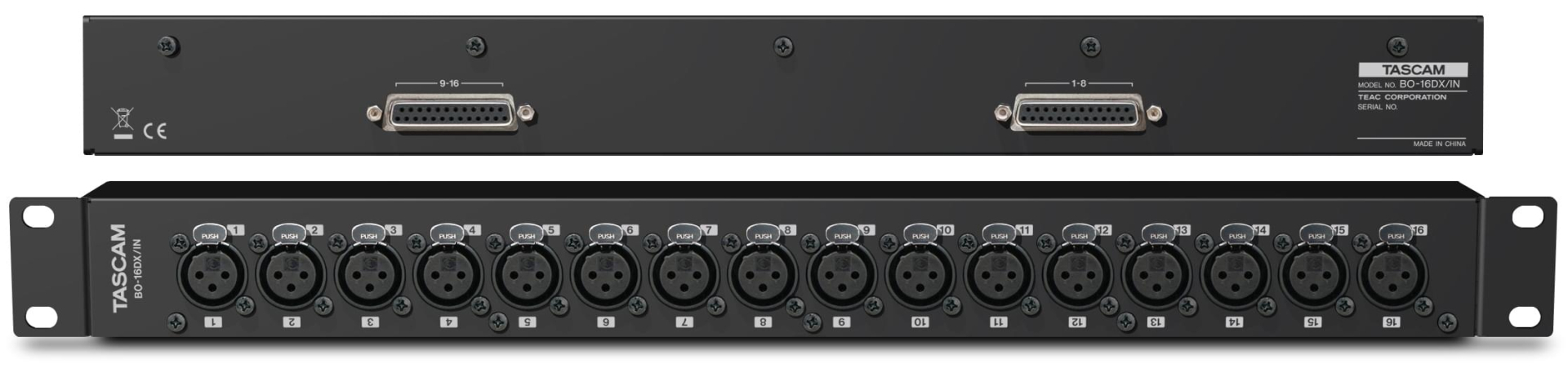

Tascam BO-16DX/IN
BO-16DX/IN
  • Breakout Box For 16 Balanced Audio Inputs
  • 16-channel balanced audio input breakout box for ML-16D/ML-32D or other products with compatible D-Sub connectors
  • 16 XLR female connectors on front panel for balanced audio inputs
  • Two 25-pin D-Sub connectors (8 audio channels each) on rear panel with standard Tascam pin assignment (AES59-2012)

Enquiry Form

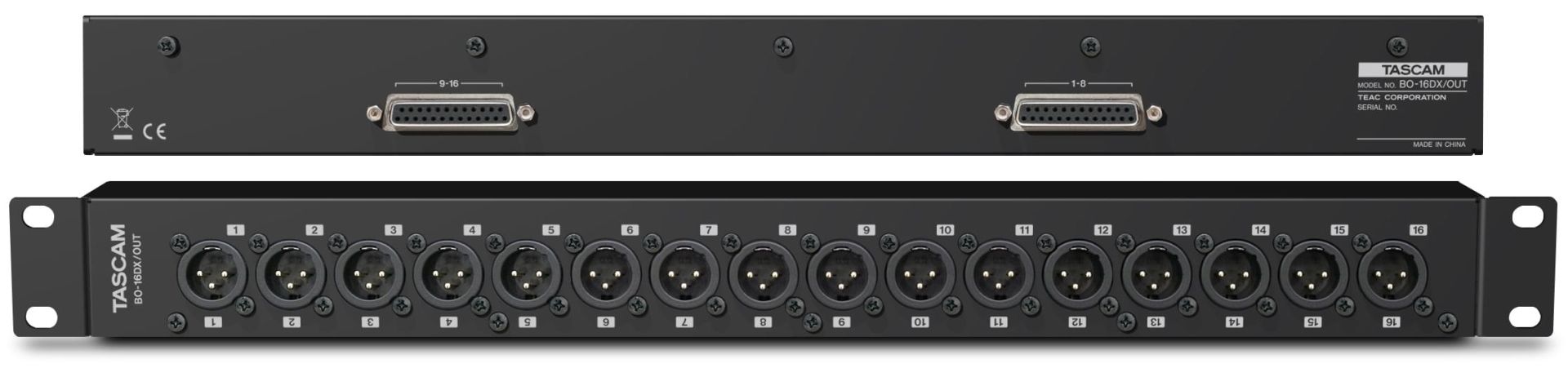

Tascam BO-16DX/OUT
BO-16DX/OUT
  • Breakout Box For 16 Balanced Audio Outputs
  • 16-channel balanced audio output breakout box for ML-16D/ML-32D or other products with compatible D-Sub connectors
  • 16 male XLR connectors on front panel for balanced audio outputs
  • Two 25-pin D-Sub connectors (8 audio channels each) on rear panel with standard Tascam pin assignment (AES59-2012)

Enquiry Form

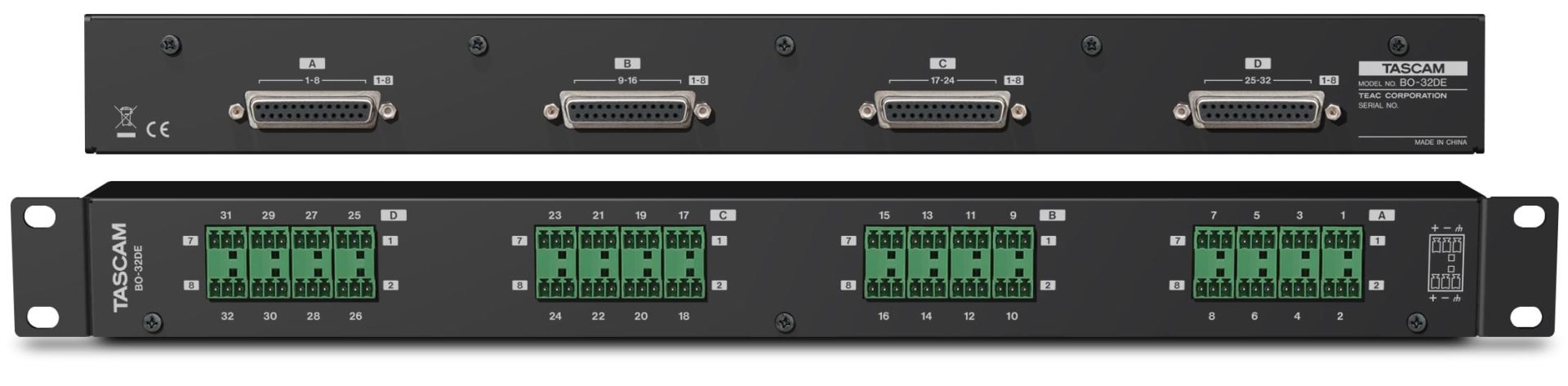

Tascam BO-32DE
BO-32DE
  • 32-channel balanced breakout box for ML-16D/ML-32D or other products with compatible D-Sub connectors
  • 16 balanced Euroblock connectors (two audio channels each) on the front panel
  • 32 Euroblock plugs with strain relief tail and wire bands included
  • Four 25-pin D-Sub connectors (8 audio channels each) on rear panel with standard Tascam pin assignment (AES59-2012)
  • Each group of eight channels can be used as balanced audio inputs or outputs

Enquiry Form

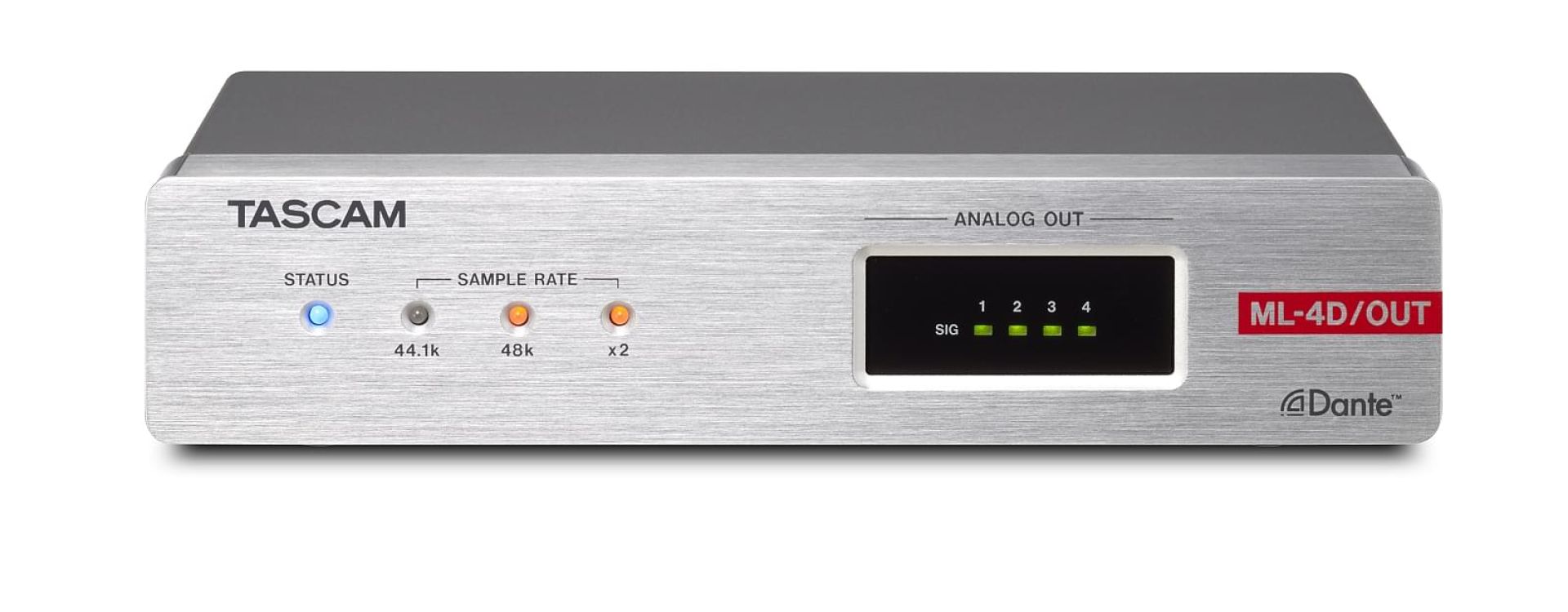

Tascam ML-4D/OUT
ML-4D/OUT
  • Four-Channel Dante-Analogue Converter With DSP Mixer
  • Equipped with Euroblock connectors for permanent installation or with XLR connectors for flexible applications and touring
  • Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter

Enquiry Form

Tascam MM-2D
MM-2D
  • Two-Channel Analogue-Dante-Analogue Converter With DSP Mixer
  • Two balanced mic/line inputs with 48 V phantom power
  • Two balanced line outputs
  • Equipped with Euroblock connectors for permanent installation or with XLR connectors for flexible applications and touring
  • Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter

Enquiry Form

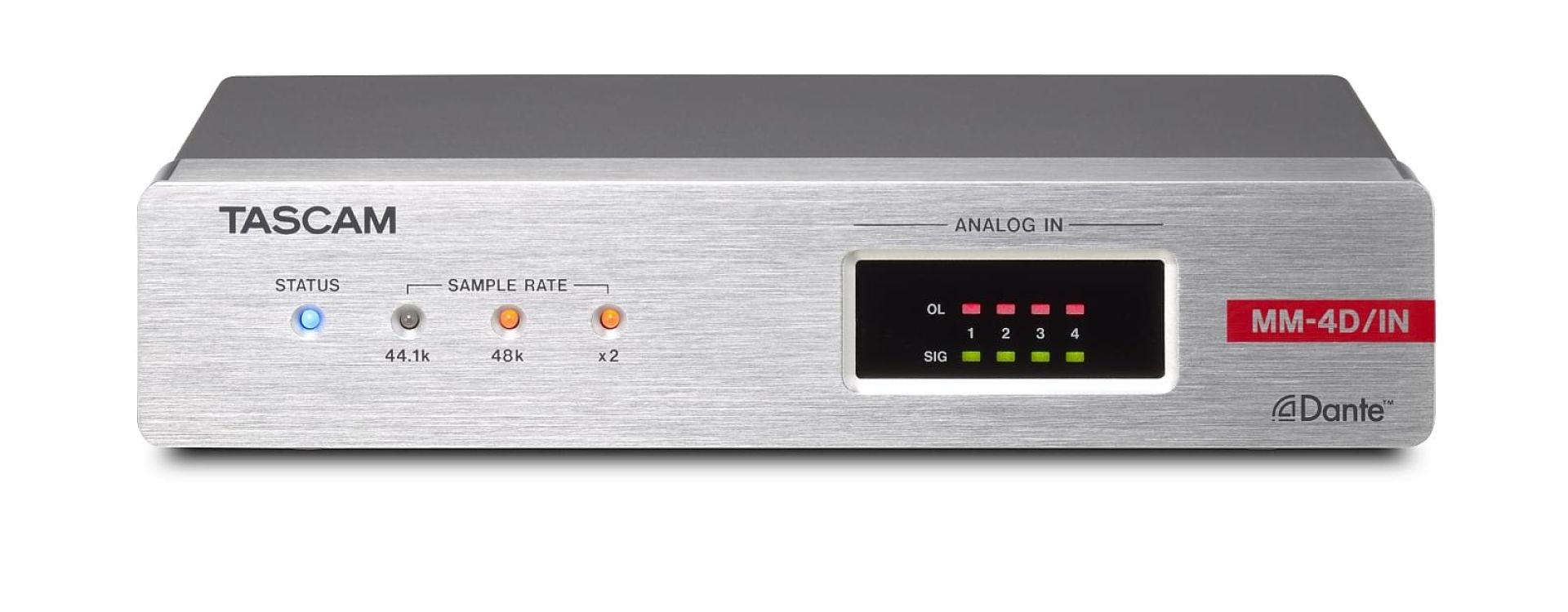

Tascam MM-4D/IN
MM-4D/IN
  • Four-Channel Analogue-Dante Converter With DSP Mixer
  • Four balanced mic/line inputs with 48 V phantom power
  • Equipped with Euroblock connectors for permanent installation or with XLR connectors for flexible applications and touring
  • AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
  • Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter

Enquiry Form

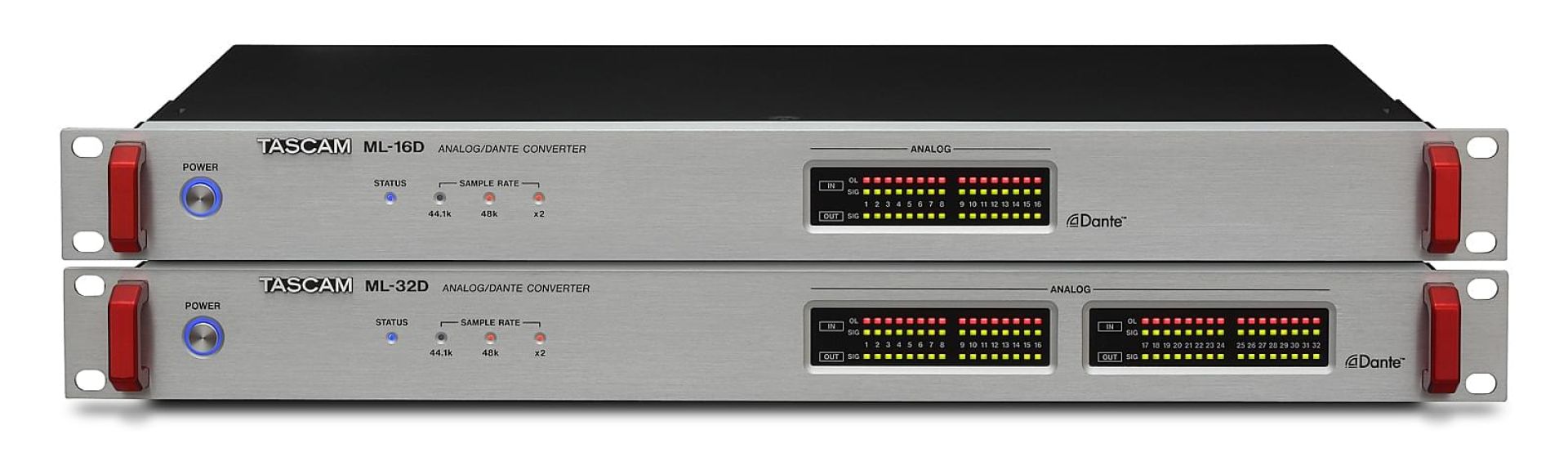

Tascam ML-16D/ML-32D
ML-16D/ML-32D
  • Analogue-Dante-Analogue converter for 16 (ML-16D) or 32 (ML-32D) line-level audio channels
  • Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via rear-side switches)
  • 25-pin D-sub connectors for balanced line inputs/outputs (AES59-2012:TASCAM pin assignment)

Enquiry Form

The Dante or AES67 network protocol is ideal for this because, unlike conventional data protocols, it causes very low latencies and therefore makes real-time capable applications possible in the first place. Our compact Dante modules provide two to 32 analogue audio inputs and outputs and can be powered via the network cable (PoE) or supplied via an AC adapter. Unlike simple Dante input and output modules, Tascam’s models include a powerful DSP processor. This provides a complete processing chain within the devices with routing mixer, equalizer, compressor/limiter and many other functions, making an additional mixer or other sound processors unnecessary. And control couldn't be easier: With our apps for macOS, Windows, iOS and Android, you can conveniently operate your sound system via tablet, smartphone or computer from a wide variety of locations.

Tascam CG Series clock generators ensure optimal synchronization of individual components in a network of digital audio devices. Instead of leaving the synching of the digital clock to individual devices or passing the clock signal from device to device, you can achieve higher quality A/D and D/A conversion and digital audio signal routing with a central clock supply. Master clock generators from Tascam are available in three distinct configurations for different applications, ranging from smaller recording studios to larger production studios and large radio and TV stations.

Tascam I/O - Downloads
Tascam System Design Guide
Download
Tascam I/O - Variant Downloads
