Tascam MX-8A Matrix Mixer

Tascam MX-8A Matrix Mixer

Key Features:

Powerful internal DSP mixing

Natural-sounding, high-grade Tascam mic preamps

Optional RC-W100 wall-mountable controller

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

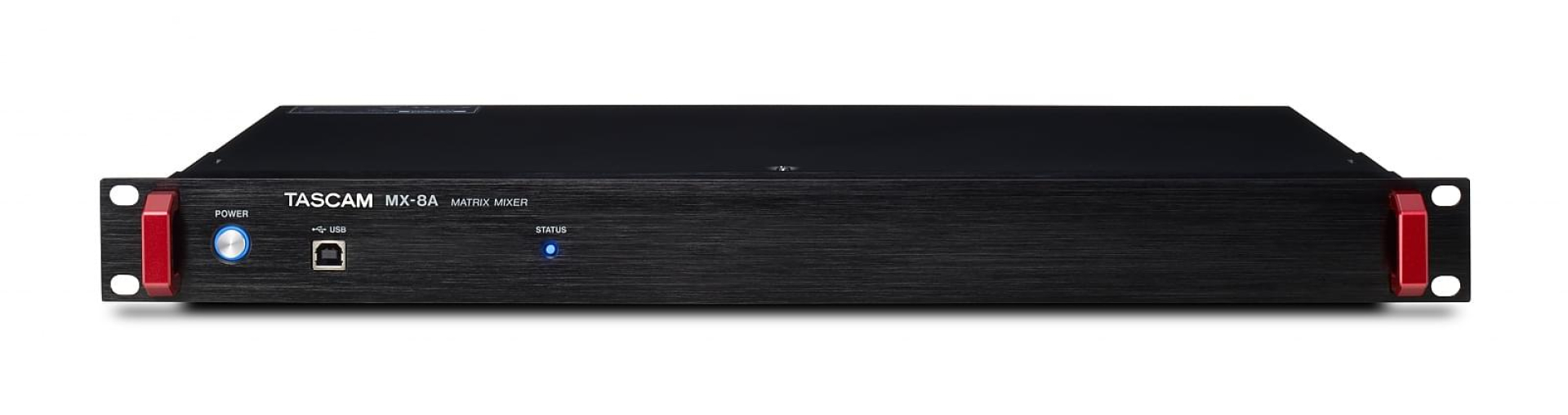

Tascam MX-8A Matrix Mixer

The Tascam MX-8A is a 10×10 matrix mixer with eight mic/line inputs, eight line outputs and stereo USB I/O compatible with software- or cloud-based conferencing platforms.

Product Variants

MX-8A

Eight-Channel Matrix Mixer With DSP Processor

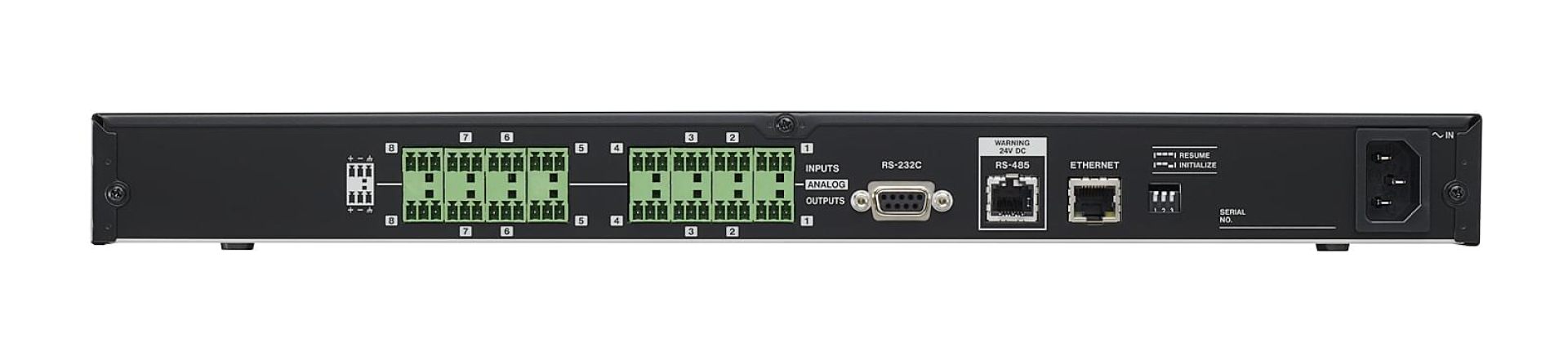

Eight balanced mic/line inputs and eight balanced line outputs
Euroblock connectors – ideal for permanent installation
USB audio interface mode allows to record audio or play background music with a computer
USB connector on front panel for easy connection of a computer, tablet or smartphone (is also used for firmware updates)

Enquiry Form

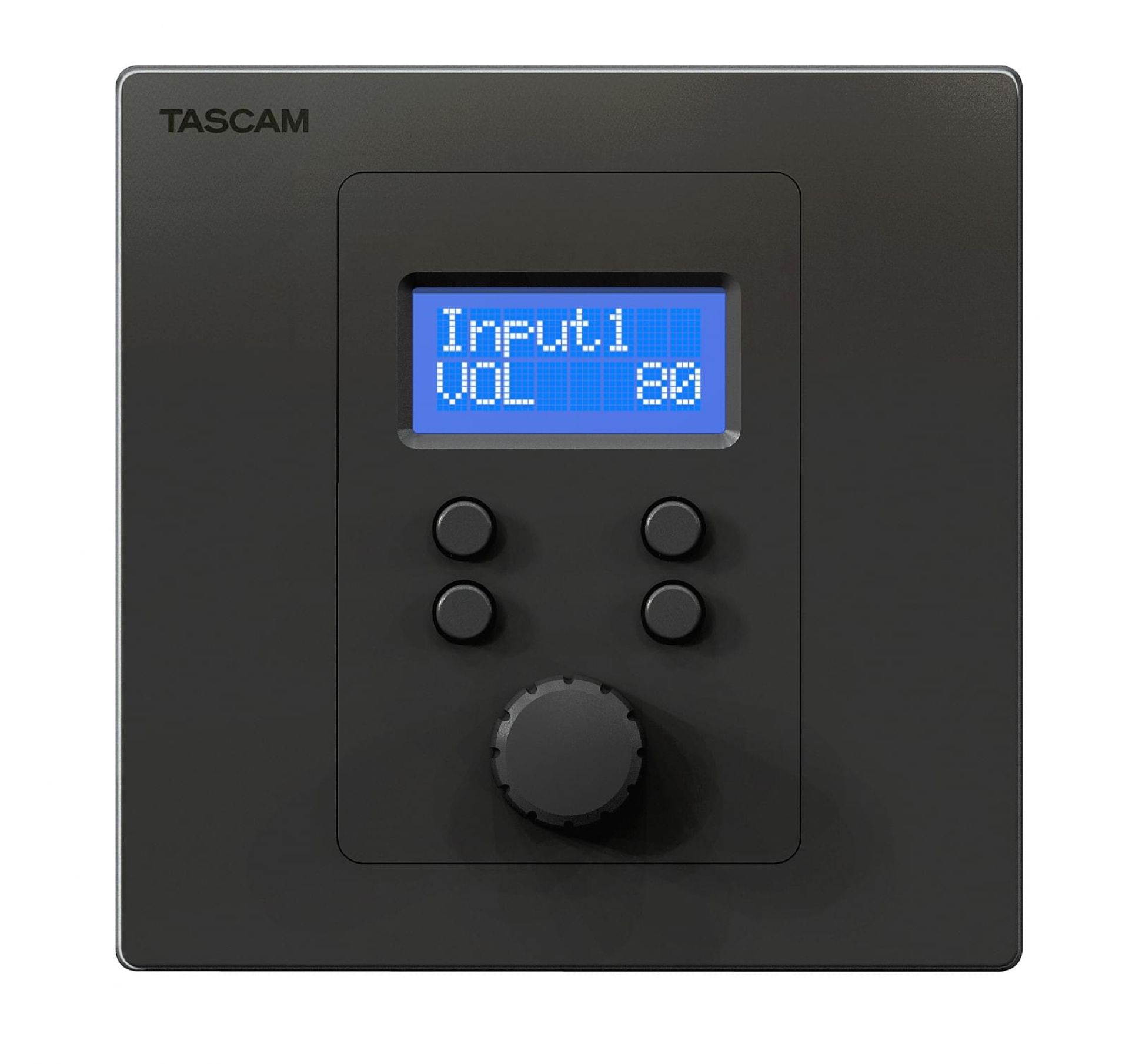

RC-W100

Wall-mounted programmable controller for MX-8A and other compatible Tascam products
Encoder (with push switch) and four switches for adjusting volume, muting and switching audio sources
Power can be supplied to the unit from the mixer via the RS-485 connection, reducing power construction and installation costs
Two variants available: RC-W100-R120, compatible with switch boxes commonly used in USA and Japan/RC-W100-R86, compatible with switch boxes commonly used in Europe

Enquiry Form

It offers powerful internal DSP mixing and routing plus multiple audio processing functions and is ideal for many applications including meeting rooms, huddle spaces, courtrooms, restaurants, stores, banqueting rooms and others.

DSP functions include a compressor, four-band parametric EQ and auto-level control for each input. The output section features a 10-band EQ with a high/low-pass filter, delay, and a limiter function per output, all of which can be adjusted and saved to any of the 50 scene memories, along with the mixing/routing settings. To make audio for announcements clearer, automatic ducking and an ambient noise compensator are also available.

The MX-8A has natural-sounding, high-grade Tascam mic preamps, leveraging our knowledge and experience from many years of making pro audio equipment. The input level range is –77.5 dBu to +26 dBu, with equivalent input noise achieving less than –126 dB, and a signal-to-noise ratio of over 108 dB.

The MX-8A can be controlled via two different software applications available for Mac, Windows, iOS and Android devices: Tascam MX Connect for configuration and Tascam EZ Connect for end users, both of which are simple to use and included with the unit. Using Tascam MX Connect installers can quickly and easily configure the MX-8A and then assign appropriate simple controls for access by users via Tascam EZ Connect.

The optional RC-W100 wall-mountable controller offers a graphic display and a push/turn multi-control knob that provides for volume control and source selection.

Tascam MX-8A Matrix Mixer - Downloads

Tascam System Design Guide
