Astra Wash19PixIP

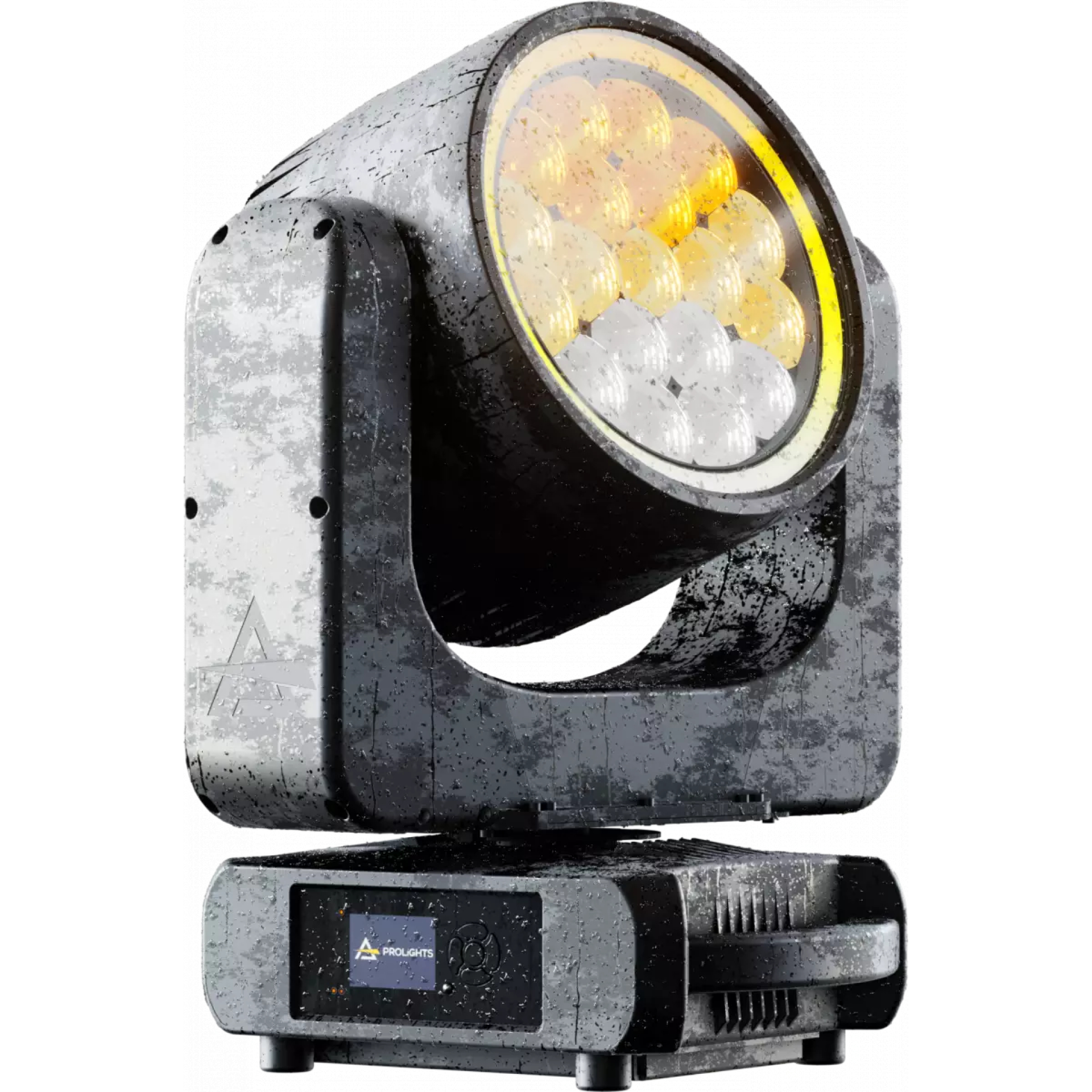

PROLIGHTS Astra Wash19PixIP

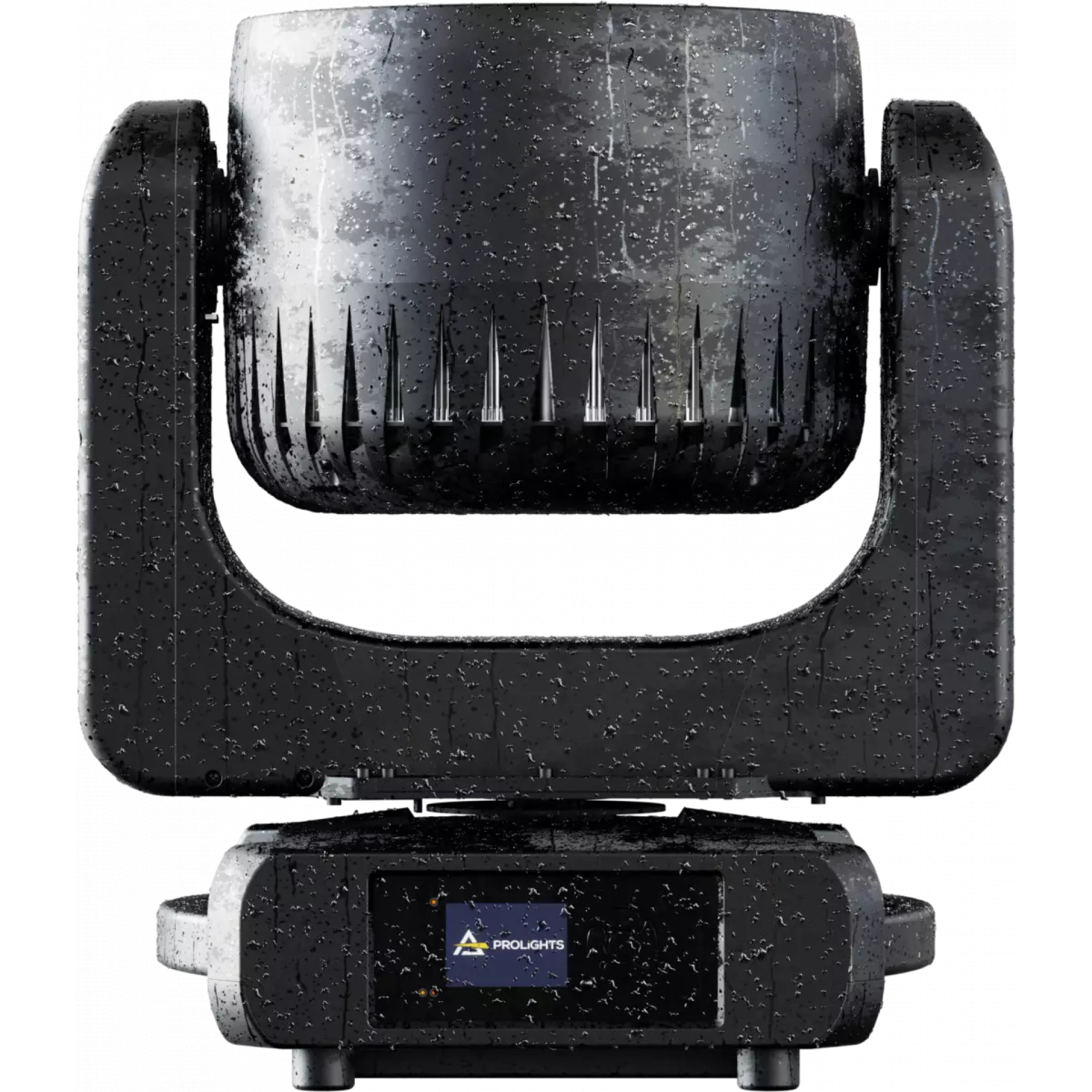

PROLIGHTS Astra Wash19PixIP - facing up

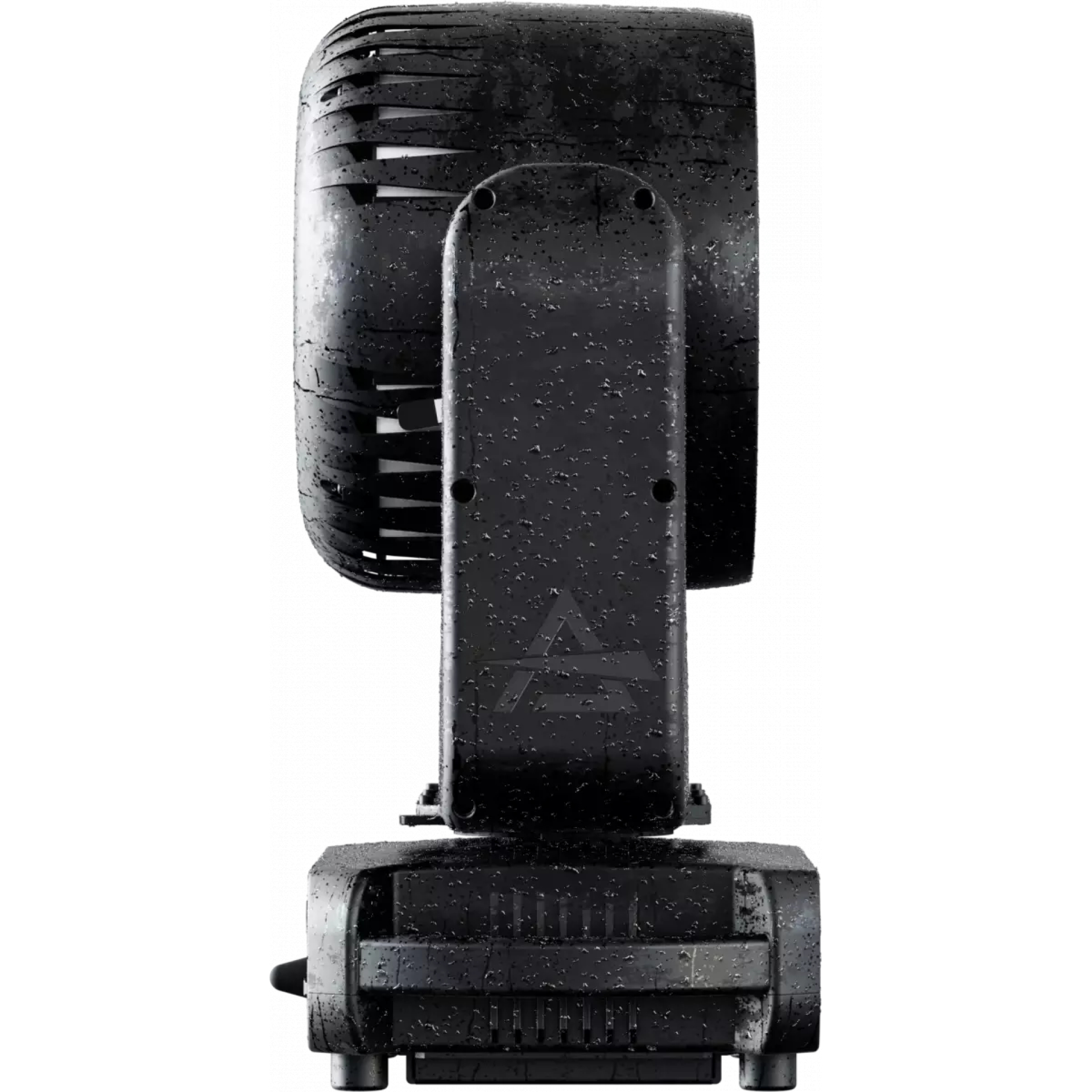

PROLIGHTS Astra Wash19PixIP - side view

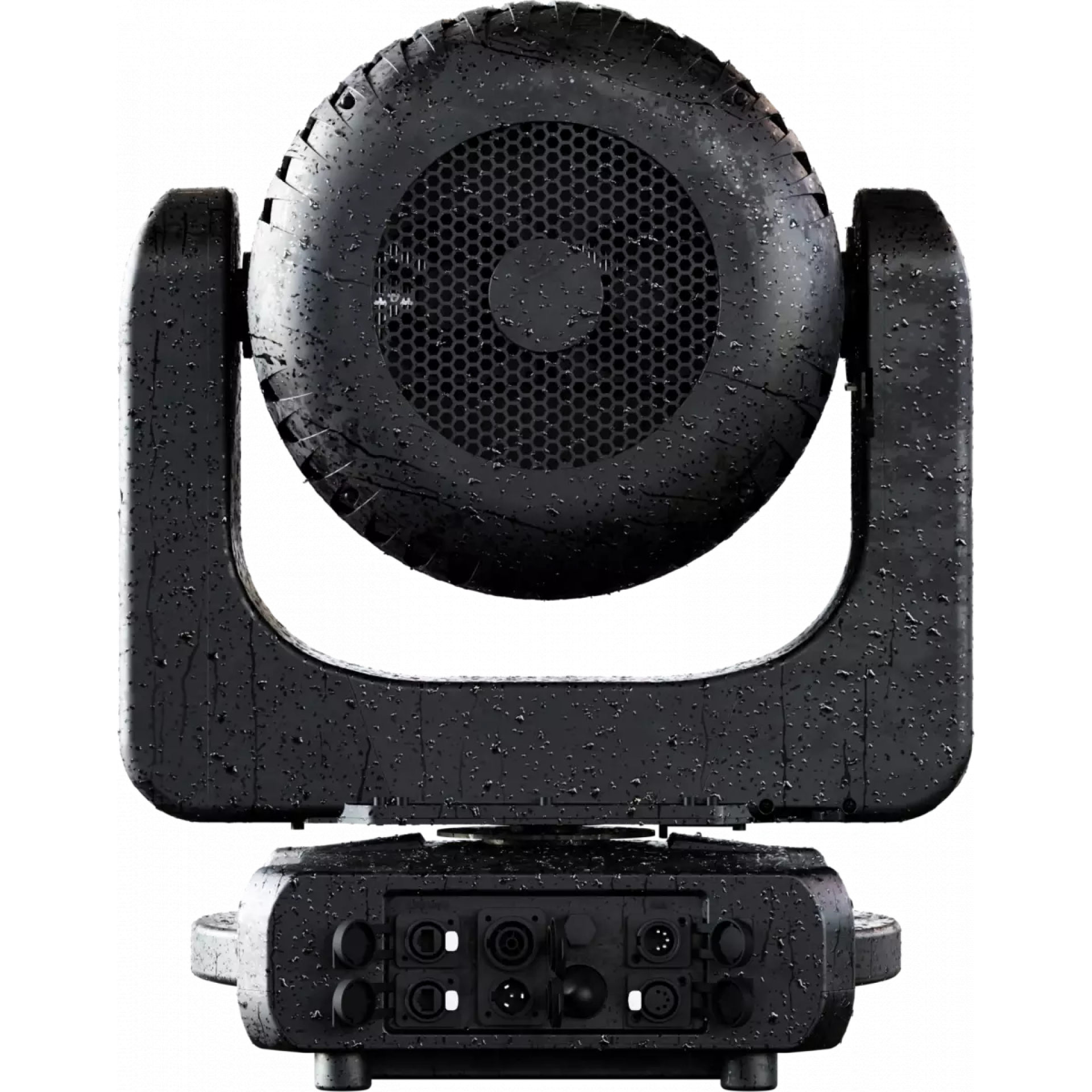

PROLIGHTS Astra Wash19PixIP - back view
PROLIGHTS Astra Wash19PixIP - facing up
PROLIGHTS Astra Wash19PixIP - side view
PROLIGHTS Astra Wash19PixIP - back view

Astra Wash19PixIP

Key Features:

  • IP65 with a compact form factor and fast movement
  • Zoom from 4° to 54° with a high-optical efficiency
  • Pixel control, precise white CCT, multiple FXs and colour features
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Wash19PixIP

The Astra Wash19PixIP is an IP65 LED moving wash light designed to be a workhorse for any large, outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance as its indoor version.

This moving washlight has a 19x40W Osram RGBW LED light source and an extremely-high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire very versatile for any application, as aerial FX or wash light.
The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX and has precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.

  • Source: 19x40W RGBW Osram Ostar LEDs

    Luminous flux: (4°) 5,505lm; (54°) 10,143 @ full

    Lux: (4°) 45,146 lx; (54°) 1,174lx @ 5m full

    Other: outer RGB pixel ring with frost film

    Source life expectancy: > 50,000 hr

    Zoom: 4° - 54° motorised linear zoom

    Lens type: honeycomb gapless plano-convex optics

    Additional optics: optics: diffuser on outer pixel ring

  • Colour mixing: RGBW / FC

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2,800K ~ 10,000K

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built pixel macros with adjustable speed

    Control Resolution: 16-bit dimmer, colours

    Pixel patterns: pre-programmed dynamic and static patterns

    FX generator: adjustable foreground/background colour, index, speed, direction

    Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX

    DMX channels: main personality 29 / 32 / 53 channel

    Pixel control: OFF, ring and pixel2pixel

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: LCD high resolution colour display with autoflip

    Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included

Astra Wash19PixIP - Downloads
PROLIGHTS Astra Wash19PixIP Spec Sheet
Download
